"Ene-Ace UT type" is Shell & Coil type heat exchanger(U tube type)

"Ene-Ace UT type" is high performance equipment.

High technology and skill are necessary for fabrication of extremely good titanium.
YAMAICHI has developed this Shell & Coil type heat exchanger(U tube type) "Ene-Ace UT type" by its own machining and welding technology without help of others.

Ene-Ace shows extreme Anti-Corrosion power by titanium tubes.
Ene-Ace is also strong against temperature change, so. Ene-Ace has strong power against damage by heat expansion
Titanium tubes of the Ene-Ace is detachable, so, it is easy to clean. Ene-Ace can keep best condition during usage.

クリックすると拡大図が別ウィンドウで表示されます。

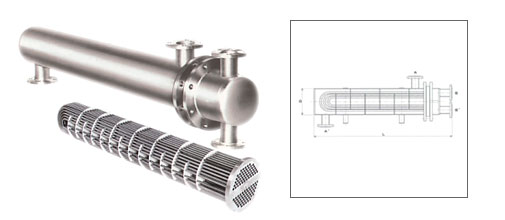

Liquid Heat Exchanger U-8-250
※ Please click the drawing to enlarge


200A
Type Thermal Conducting Area(㎡) D L AA' BB' Total Weight(kg)
U-2-200 2.0 216.3 1300 50A 50A 55
U-3-200 3.0 216.3 1770 50A 50A 65
U-4-200 4.0 216.3 2440 50A 50A 75

250A
Type Thermal Conducting Area(㎡) D L AA' BB' Total Weight(kg)
U-5-250 5.0 269.4 1815 65A 50A 150
U-6-250 6.0 269.4 2080 65A 50A 165
U-7-250 7.0 269.4 2280 65A 50A 180
U-8-250 8.0 269.4 2640 65A 50A 190

300A
Type Thermal Conducting Area(㎡) D L AA' BB' Total Weight(kg)
U-9-300 9.0 318.5 2100 80A 65A 180
U-10-300 10.0 318.5 2320 80A 65A 200
U-12-300 12.0 318.5 2740 80A 65A 225
U-14-300 14.0 318.5 3100 80A 65A 250

350A
Type Thermal Conducting Area(㎡) D L AA' BB' Total Weight(kg)
U-15-350 15.0 355.6 2490 100A 80A 250
U3-200 20.0 355.6 3210 100A 80A 300
